Your Complete GIS Data Solution

Canvas 12 with GIS+ offers a powerful set of GIS-based features and commands that support all leading GIS formats, define complex map projections, and perform advanced property operations. It's an indispensable tool for GIS professionals in the oil, gas, and energy sectors, aerospace and automotive industries, education, and government.

---

Streamline your workflow

Canvas 12 with GIS+ can handle all your GIS data needs. Import the following GIS specialized file formats:

Canvas 12 with GIS+ also supports export to these GIS specialized formats: TIFF, SHP, ECW, Geo JPEG, Geo BMP, Geo PNG, Geo GIF, and GIS Text.

---

Create with precision

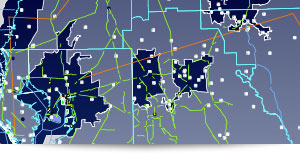

GIS Manager

Within Canvas' GIS Manager you can choose settings to define geo-referencing information for a new document, or re-set the projection of an open document. GIS Manager options include Projection, Geo CS, Angular Units, Linear Units, Axis Orientation, and the Auto Define Document Coordinate system dialog.

GIS positioning palette

Strategically move or position objects according to their latitude and longitude coordinates while displaying the Length and Forward Azimuth when measuring between two points, and the percentage of error. Measure distance in world coordinates by drawing and selecting a line between two points.

Replicate and Position dialog

Create object replicates and precisely place them according to latitude and longitude.

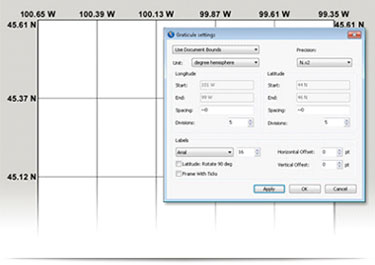

Graticule dialog

Create a grid of lines that displays meridians of longitude and parallels of latitude while precisely controlling its units of measure, precision decimal levels, longitude, latitude, start/end points, spacing/divisions, latitude degree rotation, horizontal and vertical offsets, and even the label format settings.

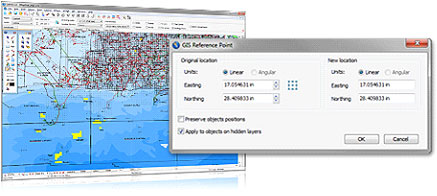

Auto Define Document Coordinate System

Set your GIS drawing scale and reference point, and define a reference rectangle. Based on the selected point or defined bounding box, Canvas then automatically sets up the projected coordinate system for that file.

---

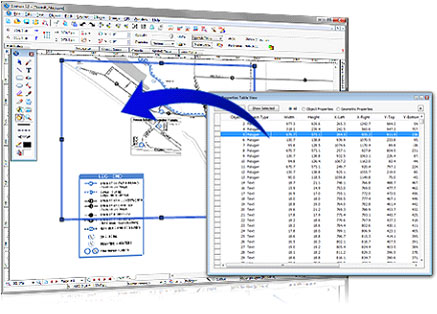

Visualize and enhance

The Select by Property interface lets you create a project-specific customized query based upon unique properties, values, or other related criteria. Edit your query to meet new project needs, save for ongoing use, or share with colleagues.

Object Properties

View, numerically edit and reapply map attributes that have been assigned to map objects, via the Object Properties Table View command.

Image Warp and Coordinates commands

Quickly yet precisely warp GIS illustrations with the Image Warp command. Or use the Coordinates command to place control points within a selected image and warp it according to these points.
